Quick Answer Box
How do 510 cartridges work?
A 510 cartridge forms an electrical circuit with a vape battery through standardized threading, sending power to a ceramic or quartz coil that heats cannabis oil to 315–430°F, converting it into inhalable vapor.
What does “510 thread” mean in vape cartridges?
The 510 thread refers to ten threads spaced 0.5 mm apart over a 5 mm length, a specification introduced by Joyetech in 2008 that enables near-universal compatibility between cartridges and batteries.
What are the main components of a 510 cartridge?
A 510 cartridge includes a mouthpiece, oil reservoir, ceramic or quartz coil, wicking material, central chimney, and threaded base with center pin, each working together to heat oil and deliver vapor efficiently.
How does a 510 cartridge create vapor step by step?
When activated, electricity flows from the battery through the center pin to the coil, heating it within seconds; oil absorbed by the wick vaporizes and travels through the chimney to the mouthpiece.
What’s the difference between ceramic and quartz 510 coils?
Ceramic coils heat evenly and preserve terpenes with longer lifespan, while quartz coils heat faster and handle thick oils but create higher temperature spikes, shorter lifespan, and sometimes harsher vapor.
What voltage is best for using 510 cartridges?
Optimal voltage depends on oil type: THC distillate performs best around 2.8–3.2 V, live resin at 2.4–2.8 V, and CBD oil at 3.3–3.7 V, balancing flavor and vapor production.
Are all 510 cartridges compatible with all batteries?
Most 510 cartridges fit most 510 batteries due to standardized threading, but performance can vary because of battery voltage limits, center-pin tolerance, airflow design, and oil viscosity differences.
In everyday use, most users notice this as a 1–3 second delay before vapor appears, which can feel slow or inconsistent depending on battery quality and oil thickness.

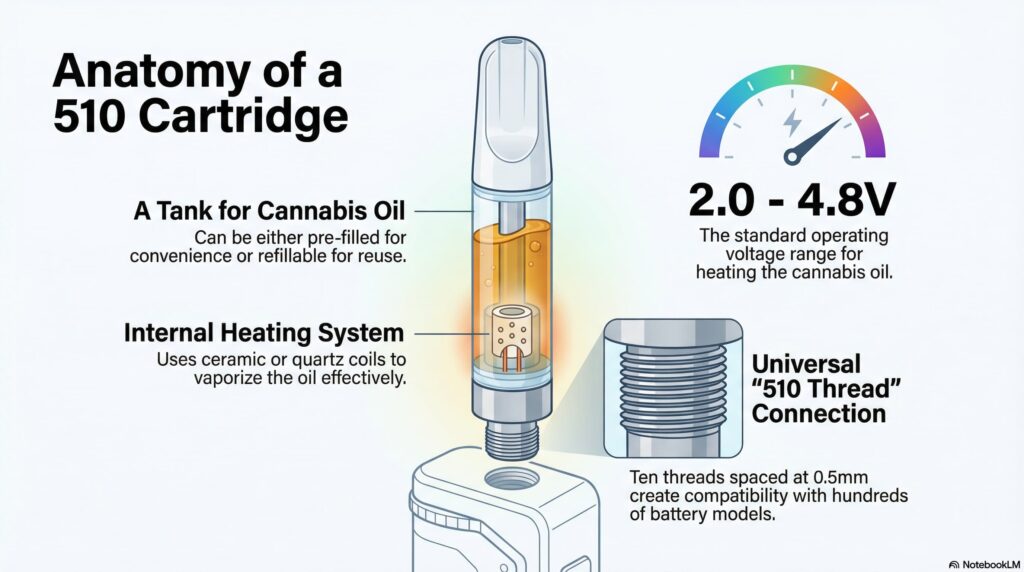

What Is a 510 Cartridge and How Does the 510 Thread System Work?
A 510 cartridge is a pre-filled or refillable cannabis oil tank that uses standardized 510 threading to connect with vape batteries, forming an electrical circuit that heats ceramic or quartz coils to produce vapor
A 510 cartridge is a refillable or pre-filled tank that attaches to vape batteries using a standardized threading system with exactly ten threads at 0.5mm spacing, creating universal compatibility across hundreds of battery models while heating cannabis oil through ceramic or quartz coils at 2.0-4.8V.
What Does the “510” Thread Specification Mean in Vape Cartridges?
The 510 thread specification defines ten threads spaced 0.5 mm apart over 5 mm, introduced by Joyetech in 2008 to enable near-universal compatibility between cartridges and vape batteries.
The “510” designation breaks down simply: 10 threads measuring 5mm in total length, with each thread spaced 0.5mm apart.
In manufacturing, thread pitch and depth can vary slightly by brand, but all compliant 510 devices stay within tolerances that allow cross-compatibility.
Joyetech introduced this specification in 2008, which became the industry standard due to its reliable connection and compact 7mm diameter. The male threading on cartridges screws clockwise into female threading on batteries, creating an electrical connection through a spring-loaded center pin.
This standardization means most 510 cartridges are compatible with most 510 batteries, significantly reducing—but not fully eliminating—compatibility issues seen in early vaping devices
In practice, users still run into issues caused by recessed center pins, airflow blockages, or unusually tight tolerances on low-cost batteries.

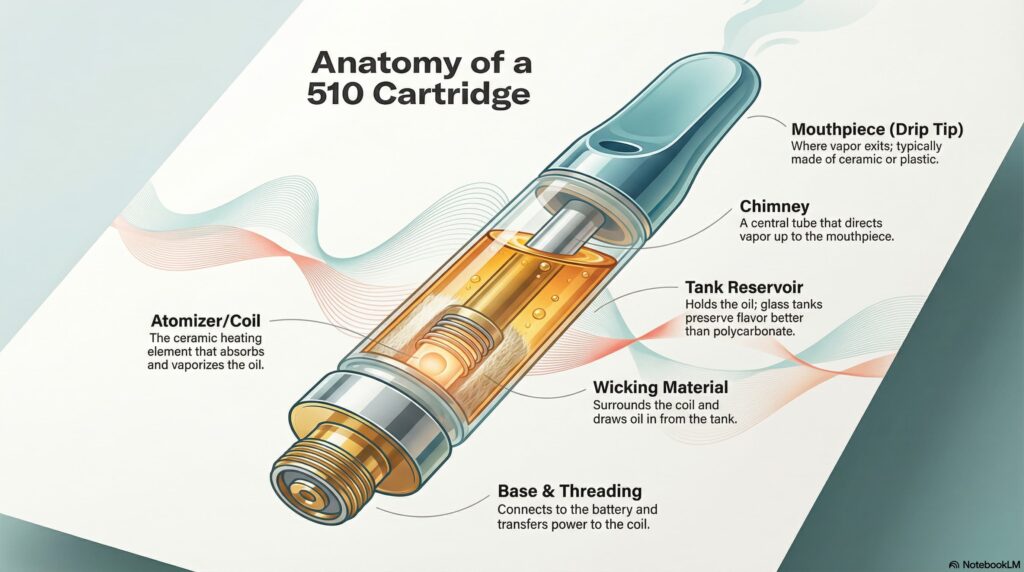

What Are the Main Parts of a 510 Cartridge and How Does Each Component Work?
A 510 cartridge consists of a mouthpiece, oil reservoir, ceramic or quartz coil, wicking material, central chimney, and threaded base, each engineered to control oil flow, heating efficiency, and vapor delivery.
Every 510 cartridge contains six essential components:
Mouthpiece (Drip Tip): Made from food-grade plastic or ceramic, this is where vapor exits. Wider bores (2.5mm) prevent clogging.
Tank Reservoir: Holds 0.5ml to 1.0ml of oil in glass or polycarbonate. Glass preserves flavor better but costs more.
Atomizer/Coil: The heating element, typically ceramic with microscopic pores designed to absorb oil through capillary action.
Exact pore size is rarely disclosed publicly by manufacturers and varies by ceramic formulation and firing process.
Wicking Material: Surrounds the coil, drawing oil from the tank. Modern ceramic wicks prevent burnt taste.
Chimney: Central tube directing vapor upward while preventing oil from entering the mouthpiece.Base/Threading: Contains the 510 connection and center post that transfers power from battery to coil.
How Does the 510 Thread Compare to Other Vape Threading Systems?
The 510 thread dominates the vape market due to universal compatibility, compact size, and broad battery support, outperforming eGo threads and proprietary pod systems in flexibility, availability, and long-term device support
| Feature | 510 Thread | eGo Thread | Proprietary Pods |
| Diameter | 7mm | 12mm | Varies |
| Compatibility | Universal | Limited | Brand-specific |
| Market Share (Estimated) | Dominant | Limited | Brand-specific |
| Average Price | $10-30 | $15-40 | $20-50 |
| Cold Weather Performance | Excellent | Good | Variable |

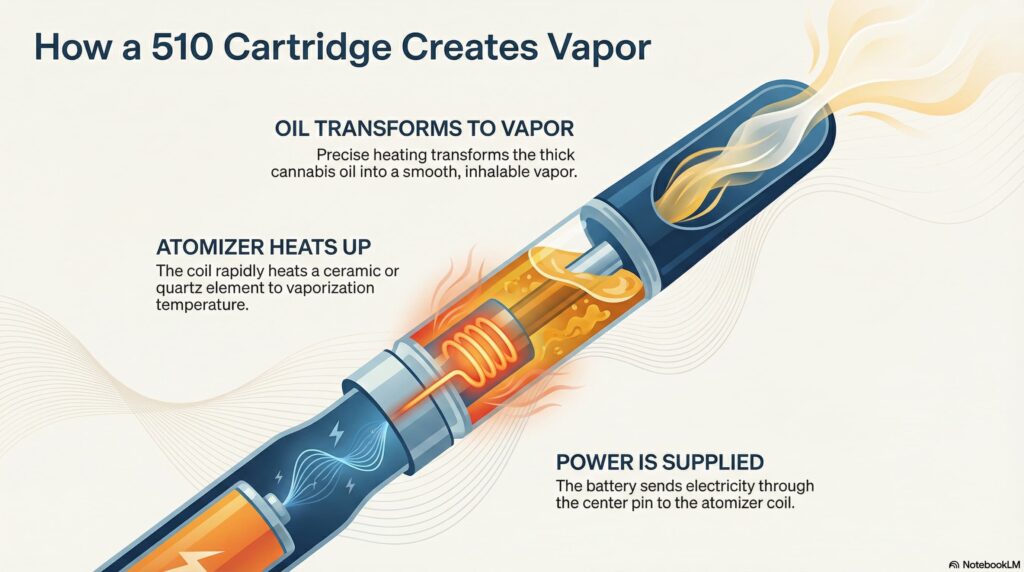

How Do 510 Cartridges Create Vapor at a Technical Level?
A 510 cartridge creates vapor by transferring battery power through the center pin to a ceramic or quartz coil, heating cannabis oil to vaporization temperature without combustion through controlled electrical resistance
Inside a 510 cartridge, the battery sends electricity through the center pin to the atomizer coil, rapidly heating the ceramic or quartz element to optimal vaporization temperature, transforming thick cannabis oil into smooth, inhalable vapor through a precise heating process.
How Do 510 Cartridges Work Step by Step?
From activation to inhalation, 510 cartridges operate through rapid power transfer, coil heating, oil absorption via wicking, vaporization, and airflow through the chimney, completing the process in roughly 2–3 seconds.
- Activation: Press the battery button or draw to activate (depending on battery type)
- Power Transfer: Electricity flows from battery through 510 connection into the center pin
- Heating: Current reaches the coil, heating it to 315-430°F in 1-2 seconds
- Oil Absorption: Heated ceramic pores draw oil from the tank through wicking action
- Vaporization: Oil reaches boiling point and converts to vapor
- Inhalation: Vapor travels up the chimney and through the mouthpiece
This entire process happens in 2-3 seconds, producing smooth vapor without combustion.
Cold oil, low battery charge, or high-viscosity formulations can noticeably slow this process for many users.
What’s the Difference Between Ceramic and Quartz Heating in 510 Cartridges?
Ceramic coils prioritize even heat distribution and terpene preservation, while quartz coils heat faster and handle thicker oils, often producing stronger vapor but higher temperature spikes and shorter coil lifespan.
Ceramic Coils (Most Common):
- Even heat distribution prevents hot spots
- Designed to maintain relatively stable temperatures during short draws
- This stability is typically measured under controlled lab conditions and may fluctuate more during long or repeated draws.
- Can help preserve terpenes like limonene (boiling point ~348°F) when used at lower voltage settings.
- Lasts 300-500 uses
- Slightly slower heat-up (2-3 seconds)
Quartz Coils:
- Heats faster (1-2 seconds)
- Creates temperature spikes up to 500°F
- Better for thick oils
- Shorter lifespan (200-300 uses)
- Can produce slight metallic taste
Users often report harsher throat feel at these spikes, especially with terpene-heavy oils.
What Are the Optimal Voltage and Temperature Settings for 510 Cartridges?
Optimal voltage depends on oil type, with THC distillate, live resin, and CBD oil each requiring specific voltage ranges to balance flavor, vapor production, terpene preservation, and coil longevity.1
Different cannabis products require specific settings for best results:
- Distillate (70-85% THC): 2.8-3.2V
- Live Resin (65-75% THC): 2.4-2.8V
- CO2 Oil (60-70% THC): 3.0-3.5V
- CBD Oil: 3.3-3.7V
Lower voltages preserve flavor, while higher voltages produce more vapor. Start low and increase gradually to find your preference.
How Do You Properly Use and Maintain 510 Cartridges?
Proper use and maintenance of 510 cartridges involve correct setup, voltage control, priming, upright storage, and regular cleaning to prevent clogs, leaks, burnt taste, and premature coil failure. 1
Operating a 510 cartridge properly ensures optimal performance, flavor, and longevity while preventing common issues like clogs, leaks, and burnt taste that frustrate many users.

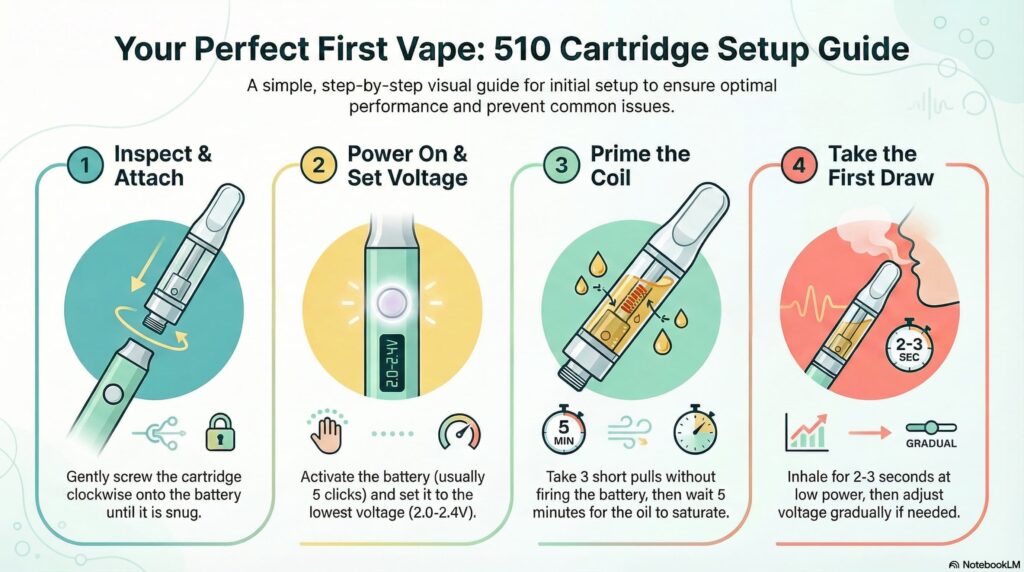

First-Time Setup Instructions
- Remove from packaging and inspect threading for damage
- Attach to battery by gently screwing clockwise until snug (don’t overtighten)
- Activate battery with 5 rapid clicks (most models)
- Set to lowest voltage (2.0-2.4V) for first use
- Prime the cartridge with 3 short pulls without firing
- Wait 5 minutes for oil to saturate the coil
- Take first draw for 2-3 seconds at low power
- Adjust voltage gradually if needed
Daily Use Best Practices
Morning First Hit: Take 2-3 primer puffs to warm overnight-thickened oil Draw Technique: Pull slowly for 3-4 seconds for optimal vapor Between Hits: Wait 30 seconds to prevent overheating Storage Position: Always store upright to prevent leaking Battery Removal: Disconnect when not using for 24+ hours
Cleaning and Maintenance Schedule
Weekly (5 minutes):
- Wipe threads with isopropyl alcohol
- Clean mouthpiece with cotton swab
- Check for oil buildup around connections
Monthly (10 minutes):
- Deep clean all connections
- Inspect o-rings for wear
- Clear air holes with toothpick
- Check battery contact points
Regular maintenance extends cartridge life from 2-3 weeks to 2-3 months.
Actual lifespan varies widely based on oil purity, voltage habits, and frequency of use.

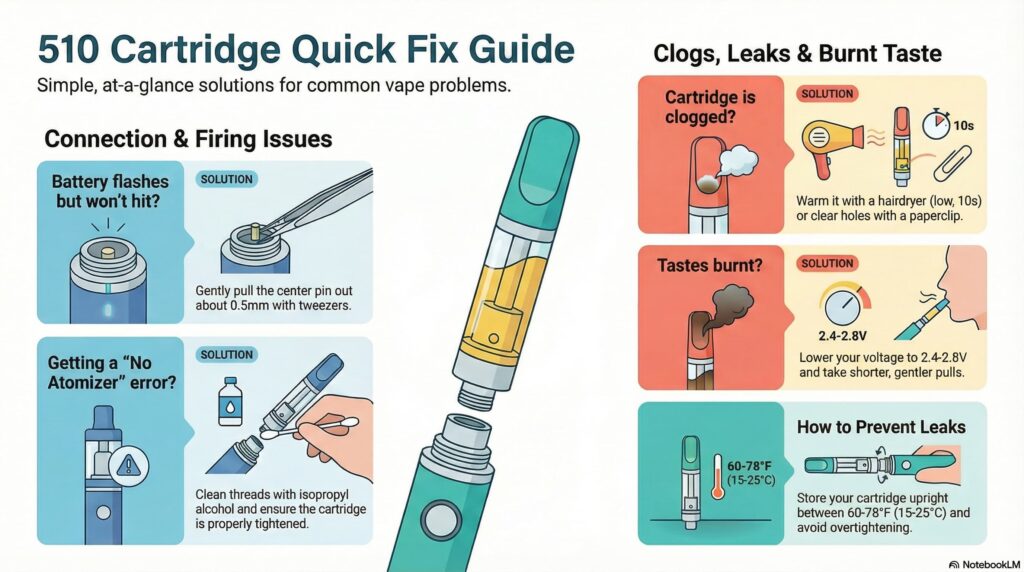

How Do You Troubleshoot Common 510 Cartridge Problems?
Common 510 cartridge issues—such as connection errors, leaks, clogs, or burnt taste—are typically caused by voltage misuse, airflow blockage, oil viscosity, or poor contact between battery and center pin.
Understanding how to fix common issues saves money and prevents frustration with 510 cartridge systems.
Why Your Cart Won’t Hit (Connection Issues)
Problem: Battery flashes but no vapor
Solution: Adjust the center pin by gently pulling it out 0.5mm with tweezers. This fix works for some users but can permanently damage the battery if done forcefully or repeatedly.
Problem: “No Atomizer” error message Solution: Clean threads with isopropyl alcohol and ensure cartridge is properly tightened
Problem: Intermittent connection Solution: Check for stripped threads; use plumber’s tape as temporary fix
Fixing Leaks and Clogs
Preventing Leaks:
- Store between 60-78°F (15-25°C)
- Keep upright when not in use
- Don’t overtighten cartridge
- Avoid altitude changes over 2,000 feet
Clearing Clogs:
- Warm cartridge with hair dryer on low (10 seconds)
- Excess heat can thin oil too much and increase leak risk if overdone.
- Take hard pull without firing battery
- Use paperclip to clear air holes if needed
- Consider increasing voltage by 0.2V
Burnt Taste Solutions
Burnt taste indicates the coil is overheating or oil isn’t flowing properly:
- Lower voltage to 2.4-2.8V
- Take shorter, gentler pulls
- Let cartridge rest between hits
- Check if cartridge is empty (oil below wick openings)
- Prime new cartridges properly before first use
What Safety Guidelines and Quality Standards Should 510 Cartridge Users Follow?
Safe 510 cartridge use depends on proper battery handling, correct charging practices, temperature-controlled storage, and selecting products verified by third-party lab testing, including Certificates of Analysis (COA).1
Using 510 cartridges safely requires understanding proper handling, storage, and quality indicators that distinguish legitimate products from potentially dangerous counterfeits.

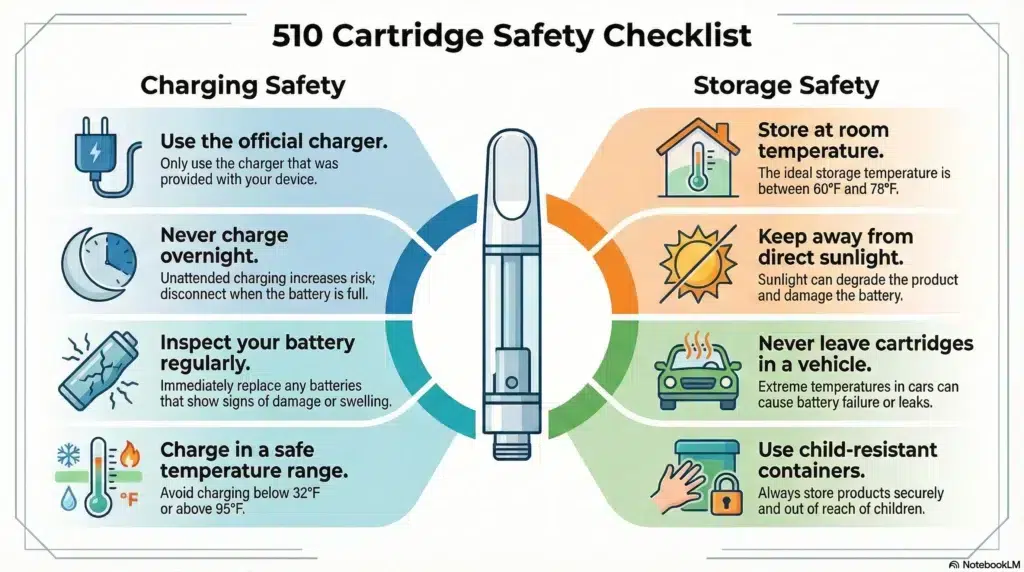

Battery Safety Essentials
Charging Safety:
- Use only the provided charger
- Never leave charging overnight
- Replace batteries showing damage or swelling
- Avoid charging below 32°F or above 95°F
Storage Safety:
- Room temperature (60-78°F) ideal
- Keep away from direct sunlight
- Store in child-resistant containers
- Never leave in vehicles
Identifying Quality Products
Quality Indicators:
- Clear, golden to amber oil color
- No cloudiness or separation
- Smooth threading without rough edges
- Brand authenticity codes
- Third-party lab test results (COA)
- Proper packaging with warnings
Red Flags to Avoid:
- Unusually low prices (under $10/gram)
- No brand information
- Spelling errors on packaging
- Extremely dark or clear oil
- No test results available
Pricing thresholds vary by province, promotions, and bulk sales, so price alone should not be the only quality signal.
How Should You Read and Understand 510 Cartridge Lab Test Results (COA)?
A Certificate of Analysis (COA) verifies THC and CBD potency, pesticide screening, heavy metals, and microbial safety, helping consumers assess cannabis oil quality and regulatory compliance before purchase.
Certificate of Analysis (COA) documents verify safety and potency:
COAs reflect a tested batch, not necessarily every individual cartridge, and should be read as screening tools rather than absolute guarantees.
What to Check:
- THC/CBD percentages (should match label ±10%)
- Pesticide screening (should show “ND” – not detected)
- Heavy metals testing (lead, cadmium, mercury, arsenic)
- Microbial contamination (E. coli, salmonella)
- Test date (within 6 months)
Buyer’s Guide: Choosing the Right 510 Cartridge
Selecting quality 510 cartridges involves understanding materials, pricing, and recognizing trusted suppliers versus potentially unsafe products.
Material Quality Comparison
| Component | Budget ($10-15) | Mid-Range ($15-25) | Premium ($25-50) |
| Tank | Plastic | Glass | Borosilicate Glass |
| Coil | Fiber Wick | Basic Ceramic | CCELL® Ceramic |
| Seals | O-rings | Silicone Gaskets | Medical-Grade Silicone |
| Lifespan | 50-100 uses | 150-250 uses | 300-500 uses |
| Warranty | None | 30 days | 60-90 days |
Budget Options ($10-15): Best for occasional users or trying new flavors. Expect basic performance and 2-3 refills before replacement.
Mid-Range ($15-25): Ideal balance for regular users. Better materials mean consistent performance and 5-7 refills.
Premium ($25-50): Worth it for daily users. Superior materials provide best flavor and 10+ refills. Brands like CCELL® dominate this category.
Where to Buy Trusted Products
Verified Retailers:
- Licensed dispensaries (recreational states)
- Official brand websites
- Authorized online retailers with age verification
What to Look For:
- Secure payment processing
- Clear return policies
- Customer service availability
- Authentic customer reviews
- Proper age verification (18+/19+/21+)
For Canadians seeking affordable quality, TenDollarCarts offers lab-tested options starting at $10, bridging the gap between budget and premium with verified products.
As with any retailer, product suitability depends on individual tolerance, device pairing, and local legal access.
The Evolution of 510 Cartridge Technology
Understanding how 510 cartridges evolved helps users appreciate modern improvements and anticipate future innovations.
Historical Development Timeline
2008: Joyetech introduces 510 threading standard 2010: First cannabis-specific cartridges appear 2013: Fiber wick systems dominate (many problems) 2016: Ceramic heating elements solve major issues 2019: CCELL® technology revolutionizes performance 2021: Smart features and app integration emerge 2024: Temperature-stable formulations for extreme climates 2025: Current generation features improved leak resistance and higher oil-to-vapor efficiency compared to earlier designs.
Current Innovations
Modern 510 cartridges include:
- Adjustable airflow systems
- Clog-resistant designs
- Child-resistant mechanisms
- Sustainable materials (recycled plastics)
- QR codes for authenticity verification
- Dose monitoring capabilities
Future Trends
Upcoming developments include:
- Bluetooth connectivity for precise dosing
- Biodegradable components
- AI-powered temperature optimization
- Tamper-evident packaging
- Blockchain verification systems
Frequently Asked Questions
How does a 510 thread cartridge work?
The 510 cartridge works by creating an electrical circuit between battery and heating element. When activated, power flows through the 510 connection to heat a ceramic coil to 315-430°F, vaporizing cannabis oil for inhalation.
Why is it called a 510 thread?
The name comes from the specifications: 10 threads that measure 5mm in total length, creating the “510” designation.
How long does a 510 battery last?
Many 650mAh batteries deliver roughly 200–300 short puffs under moderate voltage settings, though real-world use varies.. Cold weather reduces efficiency by 20-30%.
Actual puff count depends heavily on draw length, voltage setting, and oil resistance.
What voltage is best for 510 carts?
Start at 2.8V and adjust upward. Most THC distillates work best at 3.0-3.5V without burning terpenes.
Why do cartridges leak?
Temperature changes, overfilling, altitude changes, or damaged seals cause leaking. Store upright at room temperature to prevent.
How do I prevent clogs?
Store cartridges upright, use preheat functions, take slower draws, and clean air holes monthly.
Can all 510 cartridges fit all batteries?
Yes, the 510 standard ensures universal compatibility, though performance may vary based on battery specifications.
How do I know when my cartridge is empty?
Oil level drops below wick openings (visible through tank), burnt taste appears, or vapor production decreases significantly
Are expensive cartridges worth it?
For daily users, yes. Premium cartridges last 3-5x longer and provide better flavor. Occasional users can save with budget options.
What’s the legal age for purchasing 510 cartridges?
Legal purchasing age varies by jurisdiction; in Canada, most provinces restrict THC vape purchases to adults aged 18 or 19.
In Canada, most provinces restrict THC vape purchases to adults 18 or 19+, depending on provincial law.
